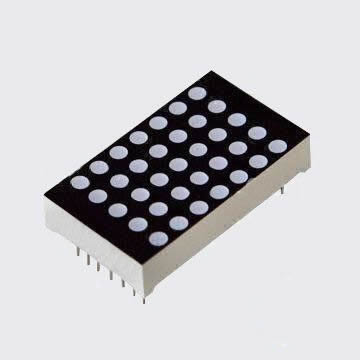

TY11257/TY21257




Specifications：
①5  x 7 dot matrix display
② 1.2  inch  (27.60 mm) matrix height
③Dot size: 3.00 mm

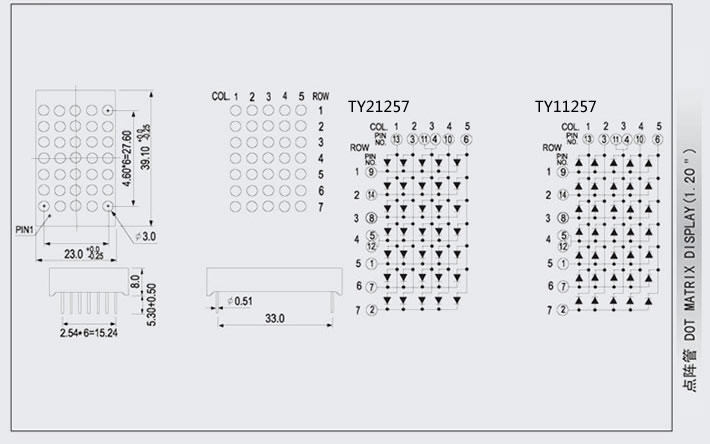

④Dimensions: 23.0  x 39.10  x 8.00 mm
⑤Total pins: 14 pins
⑥Polarity: common anode/cathode

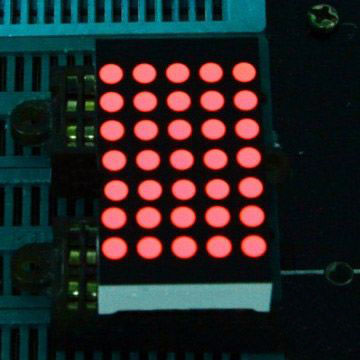

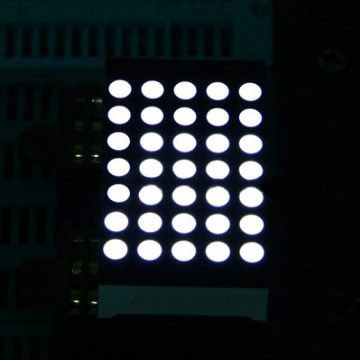

⑦Available emitted colors: high bright red/yellow green/yellow/amber/high bright blue/high bright white/pure green
⑧Operating temperature: -40 to 80°C

Features：
①High luminous intensity output
②Low voltage and current operating
③Ultra-low power consumption
④Solid-state LED chip based
⑤Long life-span
⑥Easy mounting on printed circuit board and sockets
⑦IC compatible
⑧Certificates: RoHS and SGS

Application：
①Audio equipment or instrument panels
②General use for digital indicators
③Multimedia product
④Bank exchange rate display
⑤LED clock display
⑥Display for gas station and other various display areas of equipment/machine
